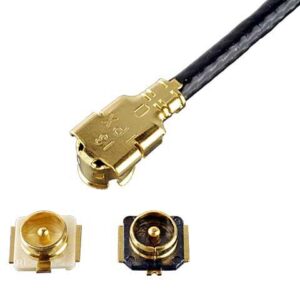

穩固的 9 GHz 最大選擇，組合高度 2.5 mm
使用 “i-Fit®” 技術的無焊料極細同軸線端子
對應9 GHz的高性能小型連接器
MHF®I公座適用的極細同軸線外徑 (AWG): 1.80 mm (30), 1.37 mm (30), 1.32 mm (32), 1.13 mm (32), 0.81 mm (36)
Height:
2.50 Max ,
頻率範圍:
Up to 9 GHz
極細同軸線(AWG):
#30 (O.D. 1.80 mm) #30 (O.D. 1.37 mm) #32 (O.D. 1.32 mm) #32 (O.D. 1.13 mm) #36 (O.D. 0.81 mm)
技術參數
| Product Type | Coaxial RF Connector |
| Height | 2.50 Max , |
| SMT Size (mm) | 3.1 x 3.0 mm |
| Frequency range | Up to 9 GHz |
| V.S.W.R. | VSWR (DC~3GHz) 1.3 VSWR (3GHz~6GHz) 1.5 VSWR (6GHz~9GHz) 1.9 |
| Applicable Standards (Reference Only) | 5G sub6 IEEE802.11b IEEE802.11a IEEE802.11g Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E LTE / LTE-Advanced LPWA Bluetooth GPS |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
料號
| MHF I RECOMMENDED PART NUMBERS | |
| Part Number Description | Part Number |
| MHF I&II RECEPTACLE | 20279-001E-03 |
| MHF I PLUG (Au plating) | 20278-112R-08 |
| MHF I PLUG (Au plating) | 20278-112R-13 |
| MHF I PLUG (Au plating) | 20278-112R-18 |
| MHF I PLUG (Au plating) | 20278-112R-32 |
| MHF I PLUG (Au plating) | 20278-212R-13 |
| MHF I PLUG (Au plating) | 20351-112R-37 |
| MHF I PLUG (Au plating) | 20351-212R-37 |
