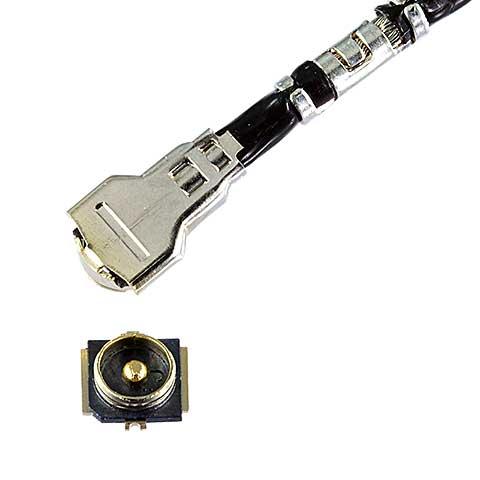

低輪廓設計，組合高度最大 1.2 mm, 此款连接器优化了空间利用率
對應6 GHz 的高性能小型連接器
使用 “i-Fit®”技術的無焊料極細同軸線終端
MHF® 4 公座適用的極細同軸線外徑(AWG) : 0.81 mm (36)
Height:
1.20 Max ,
頻率範圍:
Up to 6 GHz
極細同軸線(AWG):
#36 (O.D. 0.81 mm)
技術參數
| Product Type | Coaxial RF Connector |
| Height | 1.20 Max , |
| SMT Size (mm) | 2.0 x 2.0 mm |
| Frequency range | Up to 6 GHz |
| V.S.W.R. | VSWR (DC~3GHz) 1.3 VSWR (3GHz~6GHz) 1.5 |
| Applicable Standards (Reference Only) | 5G sub-6 IEEE802.11 b IEEE802.11 a IEEE802.11 g Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 LTE LTE-Advanced LPWA Bluetooth GPS |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
型號
| Part Number Description | Part Number |
| MHF 4 PLUG | 20611-001R |
| MHF 4 RECEPTACLE | 20449-001E-03 |
| MHF 4 PLUG O.D.0.81 mm (Au plating) | 20448-001R-081 |
| MHF 4 RECEPTACLE | 20449-001E |
| MHF 4 RECEPTACLE (2,500 pcs/reel) | 20449-001E-07 |
| MHF 4L RECEPTACLE | 20579-001E |
| MHF 4L RECEPTACLE (20,000 pcs/reel) | 20579-001E-01 |
