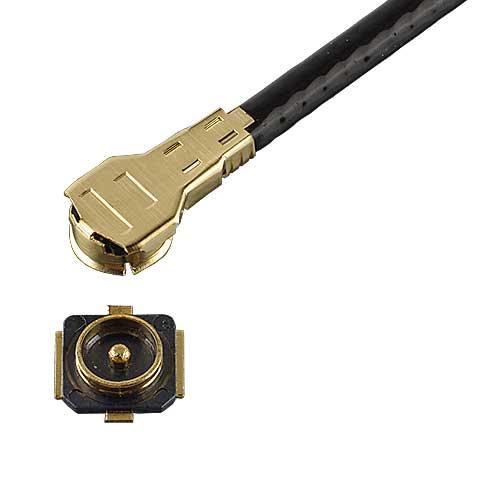

1.13 mm OD，最低高度的設計，支持 6 可達GHz
使用 “i-Fit®”技術的無焊料極細同軸線終端
對應6 GHz 的高性能小型連接器
MHF A 公座適用的極細同軸線外徑(AWG): 1.13 mm (32).
Height:
1.45 Max ,
頻率範圍:
Up to 6 GHz
極細同軸線(AWG):
#32 (O.D. 1.13 mm)
技術參數
| Product Type | Coaxial RF Connector |
| Height | 1.45 Max , |
| SMT Size (mm) | 3.0 x 3.0 mm |
| Frequency range | Up to 6 GHz |
| V.S.W.R. | VSWR (DC~3GHz) 1.3 VSWR (3GHz~6GHz) 1.5 |
| Applicable Standards (Reference Only) | 5G sub-6 IEEE802.11 b IEEE802.11 a IEEE802.11 g Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 LTE LTE-Advanced LPWA Bluetooth GPS |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
型號
MHF-A RECOMMENDED PART NUMBERS
| Part Number Description | Part Number |
| MHF-A PLUG | 20428-001R |
| MHF-A RECEPTACLE | 20429-001E |
